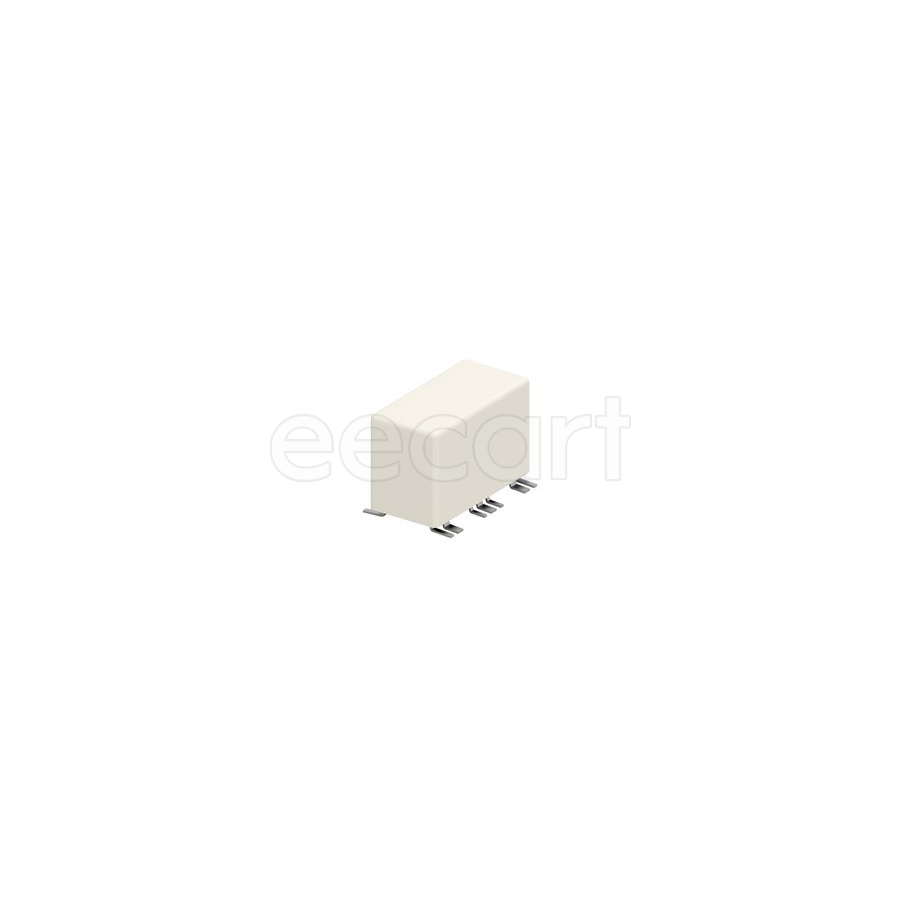

1462051-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1462051-1
Datasheet:
Description:
Signal Relays SMD/SMT 46.7 mA Non-Latching Coil Voltage (DC):3 V
| Parameter | Value |
|---|---|
| Length | 370.84 mm |
| Width | 7.2 mm |
| Termination | PCB |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 16 |
| Height | 10 mm |
| Packaging | Reel |
| Depth | 9.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 70.873808 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Silver (Ag), Gold (Au) |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Insertion Loss (dB) | -0.03 dB |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 1 |
| ELV | Compliant |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 3 V |
| Coil Current | 46.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 64 Ω |
| Relay Type | Relay |
| Operate Time | 5 ms |
| Release Time | 4 ms |
| Contact Current Rating | 2 A |
| Termination Style | Gull Wing |
| Switching Voltage | 250 V, 220 V |
| Coil Power | 140 mW |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Voltage Rating (DC) | 220 V |
| Must Operate Voltage | 2.25 V |
| Must Release Voltage | 300 mV |
| Contact Form | SPDT (1 Form C) |
Stock: 672
Distributors
pcbx
pcbxUnit Price$9.83396
Ext.Price$9.83396
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.83396 | $9.83396 |
| 10 | $8.76053 | $87.60530 |
| 25 | $8.36578 | $209.14450 |
| 50 | $8.07869 | $403.93450 |
| 100 | $7.80125 | $780.12500 |
| 300 | $7.27418 | $2182.25400 |
